Manufacturing Capabilities
Model
Package Size
Terminals
Max Die Size / Thickness
Wire
Wires Q'TY
Die Attach
Pic
0201
0.62 x 0.32 x 0.32 mm
Gold plated
9 mil / 4 mil
0.8 mil(AU)
1&2
Silver conductive adhesive
0402
1.0 x 0.6 x 0.5 mm / 1.0 x 0.6 x 0.32 mm
Gold plated
17 mil (1 e.a) 14 mil (2 e.a) / 5.5mil (0.5 mm) 4mil (0.32 mm)
0.8 mil / 1 mil / 1.5 mil(AU)
1&2
Silver conductive adhesive / Non-conductive adhesive
0402-T Side
1.0 x 0.6 x 0.5 mm / 1.0 x 0.6 x 0.32 mm
Tin plated
17 mil (1 e.a) 14 mil (2 e.a) / 5.5mil (0.5 mm) 4mil (0.32 mm)
0.8 mil / 1 mil / 1.5 mil(AU)
1&2
Silver conductive adhesive / Non-conductive adhesive
0402-3Pin
1.0 x 0.6 x 0.5 mm / 1.0 x 0.6 x 0.32 mm
Gold plated
17 mil (1 e.a) 9 mil (2 e.a) / 5.5mil (0.5 mm) 4mil (0.32 mm)
0.8 mil / 1 mil / 1.5 mil(AU)
1&2
Silver conductive adhesive / Non-conductive adhesive
0603
1.7 x 0.9 x 0.5 mm
Gold plated
25 mil (1 e.a) 25 mil (2 e.a) / 5.5mil (0.5 mm)
0.8 mil / 1 mil / 1.5 mil(AU)
1&2
Silver conductive adhesive / Non-conductive adhesive
2510
2.5 x 1.0 x 0.5 mm
Tin plated
16 mil / 5.5 mil
0.8 / 1 / 1.5 mil(AU)
6
Silver conductive adhesive / Non-conductive adhesive
Model
Package Size
Terminals
Max Die Size / Thickness
Wire
Wires Q'TY
Die Attach
Pic
0402
1.0 x 0.6 x 0.5 mm
Gold plated
14 mil / 5.5 mil
1.25 mil / 2 mil(AL)
1
Silver conductive adhesive
0603
1.7 x 0.9 x 0.8 mm
Gold plated
20 mil / 10 mil
1.25 mil / 2 mil(AL)
1
Silver conductive adhesive
1005
2.5 x 1.2 x 0.8 mm
Gold plated
28 mil / 10 mil
1.25 mil / 2 mil(AL)
1
Silver conductive adhesive
2510
2.5 x 1.0 x 0.5 mm
Gold plated
16 mil / 5.5 mil
0.8 mil / 1 mil / 1.5 mil(AU)
6
Silver conductive adhesive / Non-conductive adhesive
Model
Package Size
Terminals
Max Die Size / Thickness
Wire
Wires Q'TY
Die Attach
Pic

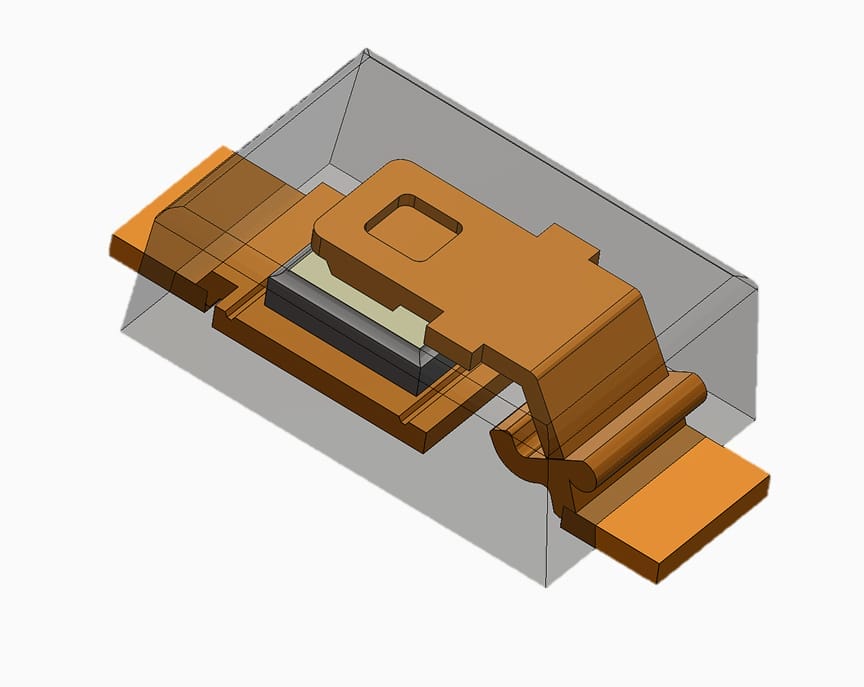

SOD-123
3.6 x 1.8 x 0.95 mm
Tin plated
54 mil / 13 mil
Clip Bond
1
Solder
